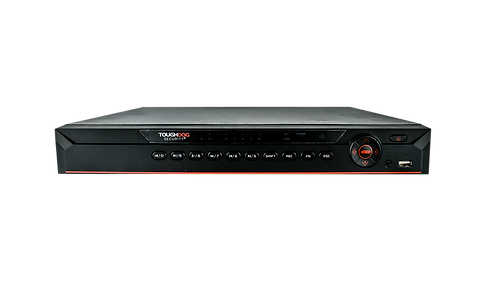

TDHDX162-4K-AI


Model



 TDHDX162-4K-AI

Analog Channel Input

16 Channel, BNC

HDCVI Camera Input

4K, 6MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

IP Camera Input

16+16 Channel, each channel up to 8MP

(If IP cameras added AI function is disable)

Incoming Bandwidth

Max 128Mbps Incoming Bandwidth

Recording Resolution

4K, 6MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF, QCIF

Perimeter Protection

2 channels, 10 IVS for each channel

(Only support HDCVI cameras)

Face Recognition

2 channels video stream face recognition,

(only support HDCVI camera)

SMD Plus

16 channel's

(only support HDVCI camera)

Display Interface

1 HDMI ,1 VGA

Interoperability

ONVIF 16.12, CGI Conformant

Operating System

Embedded LINUX



Power Supply

DC12V/5A

Power Consumption

<15W

Internal HDD

2 SATA Ports, up to 10TB capacity for each disk

Certifications

FCC: Part 15 Subpart B

CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024

.

Features

  • H.265+/H.265 dual-stream video compression

  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs

  • Max 32 channels IP camera inputs, each channel up to 8MP; Max 128 Mbps incoming bandwidth

  • Up to 2 channels video stream (analog channel) Perimeter Protection

  • Up to 16 channels video stream (analog channel) SMD Plus

  • Up to 2 channels video stream (analog channel) human face recognition

PDF File
